TCP 2x4 DT Series 5CCT LED Flat Panel – Selectable Wattage & Color Options

Customize Your Lighting with TCP's 2x4 DT Series LED Panel

Enhance your commercial or residential spaces with the versatile TCP 2x4 DT Series LED Panel. Designed for energy efficiency and flexibility, this panel offers selectable wattage (29W, 39W, 46W) with corresponding lumen outputs (3300 to 5300 lumens). Its 5CCT adjustable technology lets you choose between five color temperatures (3000K, 3500K, 4000K, 5000K, 6500K), adapting to any setting. Optional features like an integrated battery backup and microwave sensor ensure this panel is as functional as it is efficient.

With a sleek, low-profile design, this panel integrates seamlessly into standard recessed grid ceilings, making it ideal for offices, schools, healthcare facilities, and retail environments. Enjoy bright, uniform illumination with a frosted lens, designed to reduce glare and provide maximum visual comfort.

Product Spec Sheet

Key Features:

• Selectable Wattage & Lumen Package:

  • 29W (3300 lumens)
  • 39W (4200 lumens)
  • 46W (5300 lumens)

• 5CCT Adjustable: Choose from 3000K, 3500K, 4000K, 5000K, or 6500K to match your lighting needs.

• Optional Add-Ons:

  • Battery Backup: Maintains lighting during power outages.

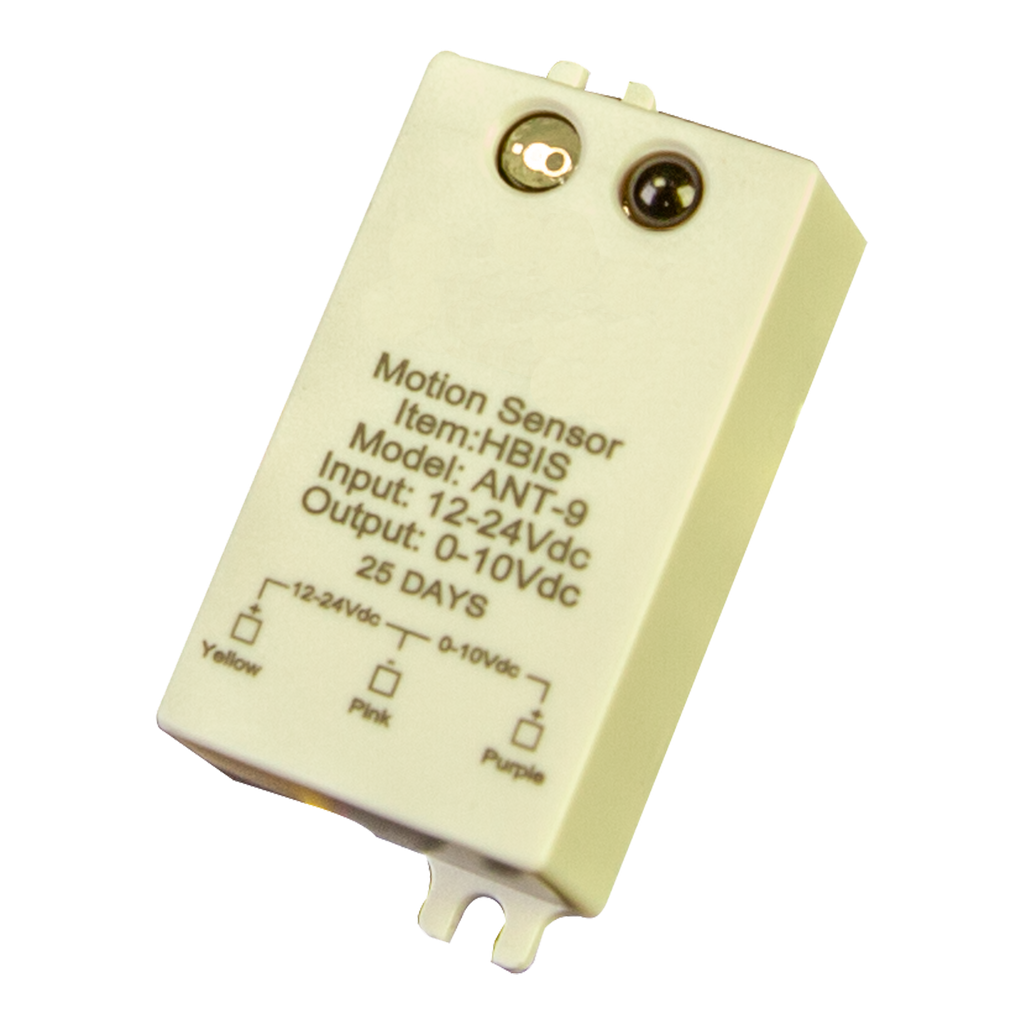

  • Microwave Sensor: Provides motion-activated lighting for enhanced energy savings.

• Energy Efficient: Saves up to 60% on energy compared to fluorescent systems.

• Durable & Long-Lasting: Rated for 50,000 hours to minimize maintenance and replacement costs.

• Easy Installation: Fits standard 2x4 recessed grid ceilings with included hardware.

Specifications:

• Wattage Options: 29W / 39W / 46W
• Lumen Output: 3300 lm / 4200 lm / 5300 lm
• Color Temperatures: 3000K / 3500K / 4000K / 5000K / 6500K
• Dimming: 0-10V dimmable
• Voltage: 120-277V
• Beam Angle: 120°
• Certifications: UL Listed, RoHS Compliant, DLC 5.1 Standard
• Lifespan: 50,000 hours
• Dimensions: 24" x 48" x 2.75"

Applications:

• Commercial Spaces: Offices, retail stores, and showrooms.
• Educational Institutions: Classrooms, libraries, and lecture halls.
• Healthcare Facilities: Exam rooms, lobbies, and corridors.
• Residential Settings: Basements and home offices.

Why Choose TCP's 2x4 DT Series LED Panel?

• Unmatched Flexibility: Customize wattage, lumen output, and color temperature to suit any environment.
• Enhanced Features: Add battery backup or motion sensor for ultimate functionality.
• Cost Savings: Reduce energy costs while enjoying superior lighting performance.
• Reliable Design: Backed by a 5-year limited warranty for peace of mind.
